Peptide API manufacturing is defined as a chemical synthesis process that assembles amino acid sequences into biologically active pharmaceutical ingredients under controlled, reproducible conditions. SPPS accounts for over 85% of global polypeptide API production, making it the dominant method in the field. That dominance reflects SPPS’s compatibility with automation, its step-by-step sequence control, and its ability to produce peptides at research and commercial scale. Regulatory bodies including the EMA have formalized expectations around this process, with a consolidated guideline effective june 2026 covering manufacturing controls, specifications, and analytical requirements for synthetic peptides. Peptilab sources and supplies research-grade peptides manufactured under these standards, with third-party certificates of analysis confirming purity at greater than 99%.
How peptide APIs are manufactured: core synthesis methods

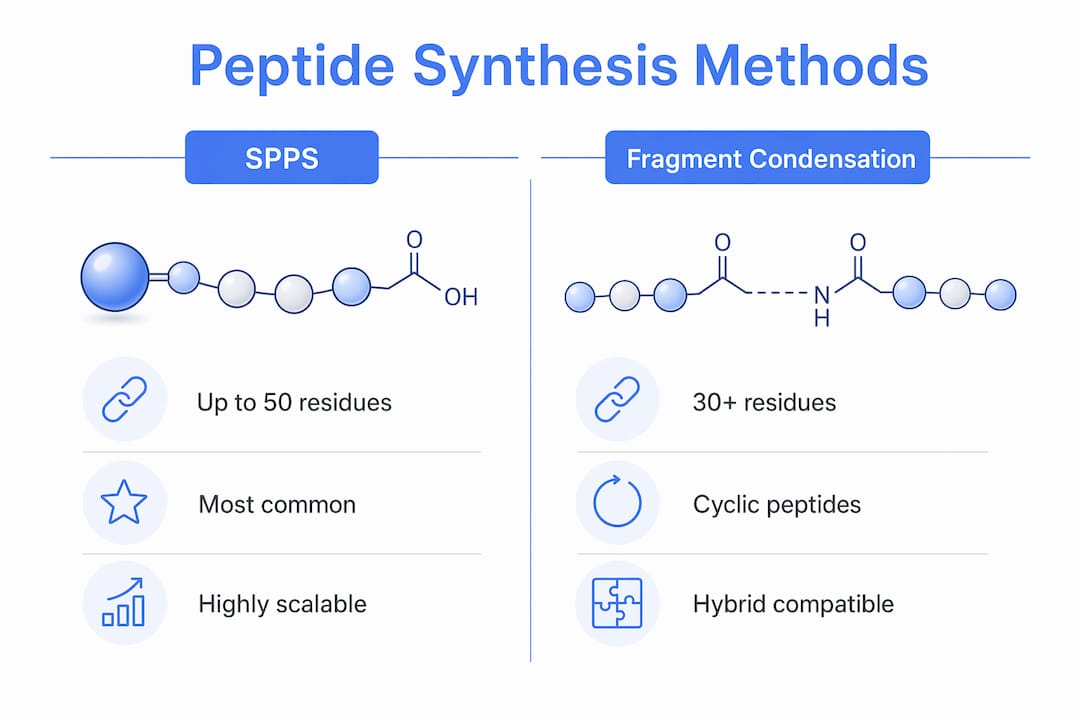

The three primary methods for producing peptide APIs are Solid-Phase Peptide Synthesis (SPPS), Liquid-Phase Peptide Synthesis (LPPS), and Fragment Condensation. Each serves a distinct role depending on peptide length, complexity, and production scale.
Solid-Phase Peptide Synthesis (SPPS)
SPPS builds a peptide chain residue by residue on an insoluble solid resin support. Protected amino acids are coupled sequentially, and after each step, the temporary protecting group is removed before the next amino acid is added. This iterative cycle repeats until the full sequence is assembled, then the peptide is cleaved from the resin and the permanent side-chain protections are removed. Automation makes SPPS highly reproducible and well-suited for sequences up to roughly 50 amino acids. Each coupling step achieves over 99% conversion, but impurities accumulate across 80 or more cycles for longer peptides. That accumulation is the central challenge SPPS faces at scale.
Liquid-Phase Peptide Synthesis (LPPS)
LPPS applies primarily to short peptides of 10 amino acids or fewer, or to hydrophobic sequences that behave poorly on resin. The reaction occurs in solution rather than on a solid support, which gives chemists more flexibility in monitoring intermediates. The tradeoff is that purification between steps is more labor-intensive, and the method does not scale as cleanly as SPPS for complex sequences.
Fragment Condensation
Fragment Condensation is used for peptides of 30 or more amino acids and for cyclic peptides where SPPS alone produces unacceptable yield loss. The approach synthesizes shorter peptide fragments separately, then couples those fragments together. Orthogonal protection strategies and tailored cleavage points in Fragment Condensation significantly improve purity and coupling efficiency compared to attempting full-length SPPS on the same sequence.
| Method | Peptide length | Best use case | Scale suitability |
|---|---|---|---|
| SPPS | Up to ~50 amino acids | Standard research and commercial APIs | High, with automation |
| LPPS | Up to ~10 amino acids | Hydrophobic or short specialized peptides | Moderate |
| Fragment Condensation | 30+ amino acids, cyclic | Long-chain and complex sequences | Moderate to high |
Pro Tip: When selecting a synthesis method, match the strategy to peptide length first. Forcing a 40-residue peptide through SPPS without a hybrid or fragment approach will cost you yield and purity at every purification step.
What process parameters determine peptide API quality?
The quality of a peptide API is set during synthesis, not rescued during purification. Getting the process parameters right from the start is what separates a high-purity product from a batch full of deletion sequences and racemized residues.
Resin selection depends on peptide length and the desired C-terminal functionality. Wang resin delivers a free carboxylic acid at the C-terminus, Rink amide resin produces a C-terminal amide, and 2-CTC resin offers acid-labile attachment suited for sensitive sequences. The resin must also have appropriate swelling properties in the chosen solvent system to allow reagent access throughout the bead matrix.
Protected amino acid quality is a direct input into final product purity. Racemization during coupling is the most common source of diastereomeric impurities, and it is minimized by selecting coupling reagents that activate the carboxyl group rapidly without epimerizing the alpha carbon. Reagents such as HATU, HBTU, and DIC/Oxyma are standard choices in modern SPPS for this reason.
Cleavage protocols must match the protection chemistry in use. Fmoc-based SPPS typically uses a trifluoroacetic acid (TFA) cocktail containing scavengers to remove side-chain protecting groups and release the peptide from the resin simultaneously. The composition of that cocktail, its contact time, and the temperature all affect how cleanly the peptide is released and how many side reactions occur.
Purification by preparative reversed-phase HPLC is the industry standard for achieving the purity levels required in peptide APIs. The mobile phase gradient, column chemistry, and load volume all require optimization for each sequence. Researchers sourcing peptides should review peptide sequence verification methods to understand how analytical data maps back to these production decisions.
Pro Tip: Always request the preparative HPLC chromatogram alongside the analytical HPLC trace. The preparative run shows how much material was discarded to achieve the stated purity, which tells you a great deal about the synthesis quality before purification.
How is peptide quality control performed on APIs?
Peptide quality control requires distinguishing between two separate measurements: chromatographic purity and net peptide content. Conflating them is one of the most common errors in peptide procurement and research dosing.
-
Chromatographic purity by RP-HPLC measures the area percentage of the target peptide peak relative to all detected peaks. A result of 98% by area sounds high, but it does not account for UV-invisible species.
-
Net peptide content measures the actual mass of peptide in a sample by nitrogen analysis or quantitative amino acid analysis. A 98% HPLC purity result may correspond to only 70–80% actual peptide mass when counterions and residuals are factored in. That gap directly affects dosing accuracy in bioassays.
-
Residual TFA quantification is critical because TFA can constitute 10–40% of peptide powder mass after lyophilization. Researchers who dose by weight without accounting for TFA content systematically underdose their experiments.
-
Mass spectrometry confirms molecular identity and detects deletion sequences, oxidized residues, and incomplete deprotection products that co-elute with the target peak on HPLC.
-
NMR is used to detect counterion identity and quantity, particularly for acetate or TFA salts, which affect both mass calculations and biological activity.
EMA’s guideline on synthetic peptide manufacture formalizes acceptance criteria for these measurements and requires manufacturers to demonstrate control over racemization and impurity profiles. Peptilab provides certificates of analysis that address both chromatographic purity and identity confirmation, giving researchers the documentation needed for GMP-aligned work.
What are the challenges of scaling up peptide API production?
Scaling peptide API production from milligrams to kilograms introduces problems that do not exist at bench scale. The chemistry does not simply multiply; the process must be redesigned at each order-of-magnitude increase.
Process mass intensity (PMI) is the ratio of total material input to product output, and it becomes a major cost and environmental concern as SPPS scales. Solvent consumption grows disproportionately with peptide length because each coupling and wash cycle requires large volumes relative to the amount of product generated.
Hybrid synthesis addresses this directly. Hybrid approaches combine SPPS for fragment production with LPPS for fragment coupling, reducing overall solvent use and improving yield for long or complex sequences. This strategy is increasingly adopted for late-stage development where PMI targets are tied to regulatory submissions and environmental assessments.
Integrated development strategies that align API manufacturing with injectable product formulation compress clinical timelines significantly. Combining API synthesis with injectable formulation development can reduce phase I clinical entry to approximately 11 months. That compression matters enormously in competitive drug development programs where speed to first-in-human trials is a strategic priority.
Process validation under GMP requires multiple production batches with documented control of coupling times, reagent quantities, temperatures, and cleaning procedures to prevent cross-contamination. Researchers planning to transition from research-grade to GMP-grade supply should review peptide API sourcing best practices before selecting a manufacturing partner.
Pro Tip: For peptides above 30 residues, request a hybrid synthesis quote alongside a standard SPPS quote. The yield improvement often offsets the added complexity, and the PMI reduction can matter for regulatory filings at later development stages.
Key Takeaways
Peptide API manufacturing quality is determined by synthesis method selection, process parameter control, and rigorous analytical characterization at every stage.
| Point | Details |
|---|---|
| SPPS dominates production | SPPS accounts for over 85% of peptide API output due to automation and sequence control. |
| Method must match peptide length | Use LPPS for short sequences, Fragment Condensation or hybrid approaches for peptides above 30 residues. |
| Net peptide content matters | Chromatographic purity alone does not reflect true peptide mass; TFA and counterions reduce actual content significantly. |
| Scale-up requires process redesign | PMI and solvent consumption grow disproportionately with peptide length, requiring hybrid strategies at commercial scale. |
| GMP validation is non-negotiable | Multiple documented batches with controlled parameters are required before a process qualifies for clinical supply. |
What I’ve learned about manufacturing peptide APIs that most guides skip
The part of peptide manufacturing that gets underestimated most consistently is impurity management during SPPS. Researchers see a 99% coupling efficiency and assume the final product will be clean. What that number obscures is the compounding effect: across 60 or 80 cycles, even a 0.5% failure at each step produces a complex mixture of deletion sequences that co-elute with the target. Automation helps with reproducibility, but it does not eliminate the chemistry problem. The solution is not faster synthesis. It is choosing the right strategy for the peptide length before the first amino acid is loaded onto the resin.
Sustainability is also a real pressure in this field, not a marketing claim. The solvent volumes required for large-scale SPPS are substantial, and the industry is actively working on continuous purification methods and greener solvent systems to reduce PMI. Researchers who understand these pressures are better positioned to evaluate manufacturer claims and ask the right questions about process design.
The analytical side is where I see the most gaps in practice. Researchers routinely dose experiments using weight without accounting for TFA content or counterion mass. That produces inconsistent results that look like biological variability but are actually measurement errors. Comprehensive characterization, including net peptide content and counterion identification, is not optional for serious research. It is the baseline.
— Admin
Peptilab’s research peptide catalog for scientists
Researchers who understand how peptide APIs are produced know exactly what to look for in a supplier: documented synthesis methods, third-party analytical data, and transparent purity reporting that goes beyond a single HPLC trace.
Peptilab supplies research-grade peptides in Canada with certificates of analysis covering chromatographic purity and identity confirmation for every product. The catalog includes peptides for metabolic, cosmetic, and biomedical research applications, all manufactured to greater than 99% purity standards. Researchers working on peptide formulation development will find both the peptide APIs and the supporting documentation needed for rigorous experimental work. Canadian fulfillment means no import delays and no customs uncertainty for domestic research teams.
FAQ
What is the most common method for manufacturing peptide APIs?
Solid-Phase Peptide Synthesis (SPPS) accounts for over 85% of global peptide API production. It builds peptide chains residue by residue on a solid resin support, with high automation and reproducibility.
Why does HPLC purity not equal actual peptide content?
Chromatographic purity measures peak area percentage but does not account for UV-invisible species, counterions, or residual TFA. A peptide showing 98% HPLC purity may contain only 70–80% actual peptide mass by weight.
When should Fragment Condensation be used instead of SPPS?
Fragment Condensation is the preferred strategy for peptides of 30 or more amino acids and for cyclic peptides. It reduces the yield loss and impurity accumulation that occur when SPPS is applied alone to long sequences.
What does GMP process validation require for peptide APIs?
GMP validation requires multiple production batches with documented control of coupling times, reagent amounts, temperatures, and cleaning procedures. These records demonstrate that the process consistently produces a peptide API meeting its specifications.
How does TFA affect peptide dosing in research?
Residual TFA from SPPS cleavage can constitute 10–40% of lyophilized peptide powder mass. Researchers who dose by total weight without correcting for TFA content will systematically underdose their experiments.
