A peptide lab protocol is a defined set of stepwise procedures governing the synthesis, purification, handling, and analysis of peptides to ensure reproducibility and quality in biochemical research. The industry standard method for peptide synthesis is solid-phase peptide synthesis (SPPS), a technique where the peptide chain assembles on an insoluble resin support. Every credible lab protocol covers reagent preparation, deprotection cycles, coupling verification, purification, reconstitution, and documentation. Peptilab supplies research-grade peptides with certificates of analysis (COAs) and purity guarantees above 99%, giving researchers a reliable starting point for protocol-driven work.
What is peptide lab protocol and how does SPPS define it?
A peptide lab protocol is the written, repeatable procedure that governs every stage of peptide work, from raw amino acid coupling to final storage. SPPS is the dominant synthesis method because it anchors the growing peptide chain to an insoluble polymer resin, allowing excess reagents to be removed by washing rather than by extraction. That physical separation makes each cycle cleaner and more controllable than liquid-phase peptide synthesis (LPPS), where reagents and product share the same solution.
SPPS cycles follow a strict sequence: resin swelling in a solvent, deprotection of the terminal amine, washing, coupling of the next protected amino acid, and washing again. Each step is chemically stateful. The outcome of the coupling step depends entirely on whether deprotection was complete. Skipping a verification check does not save time; it propagates errors through every subsequent residue.
Fmoc-SPPS is the most widely used variant. The Fmoc (9-fluorenylmethyloxycarbonyl) group protects the alpha-amine during coupling and is removed with a base such as piperidine before the next residue is added. Peptide chains elongate from C-terminus to N-terminus, meaning the first amino acid is anchored at its carboxyl end and the chain grows toward the free amine. That directionality is not arbitrary; it reflects the chemical stability of the protecting groups used at each position.

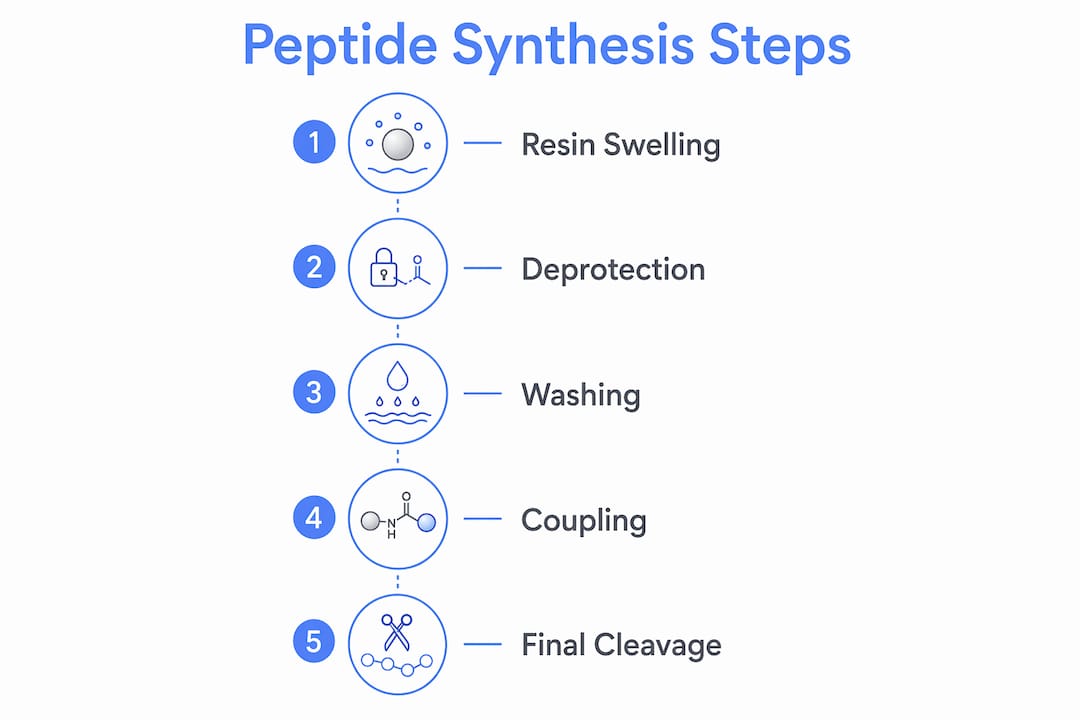

The numbered steps in a standard Fmoc-SPPS protocol run as follows:
- Resin swelling. Soak the resin in DMF (dimethylformamide) or NMP (N-methylpyrrolidone) for 30–60 minutes. Swollen resin exposes reactive sites and improves coupling efficiency.

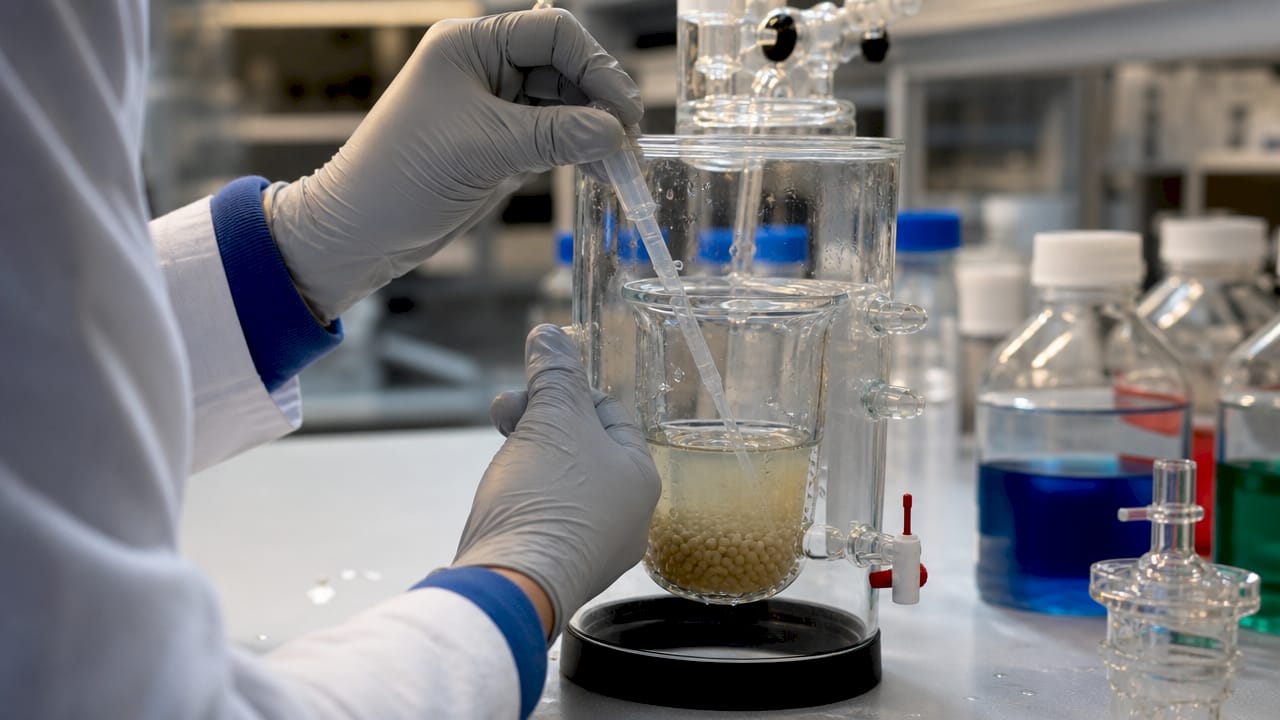

- Deprotection. Treat the resin with 20% piperidine in DMF to remove the Fmoc group from the terminal amine.
- Deprotection verification. Run a Kaiser test or UV absorbance check at 301 nm. A positive result confirms free amine before coupling proceeds.
- Washing. Wash the resin three to five times with DMF to remove piperidine and byproducts completely.
- Coupling. Add the next Fmoc-protected amino acid with a coupling reagent such as HBTU or DIC. Allow the reaction to run to completion.
- Washing. Wash again with DMF, then DCM (dichloromethane), to clear unreacted amino acid and coupling reagents.
- Repeat. Cycle through steps 2–6 for each residue in the sequence.
- Cleavage and deprotection. Treat the completed resin-bound peptide with a TFA (trifluoroacetic acid) cocktail to cleave the peptide and remove side-chain protecting groups simultaneously.
- Precipitation and purification. Precipitate the crude peptide in cold diethyl ether, then purify by reverse-phase HPLC.
Pro Tip: Never rely on reaction time alone to confirm deprotection. The Kaiser test takes under five minutes and prevents synthesis errors from compounding across an entire sequence.
What lab equipment and materials are essential for peptide protocols?
The essential peptide lab equipment checklist divides into four categories: synthesis hardware, chemical reagents, purification instruments, and downstream handling supplies. Missing any one category creates a bottleneck that no protocol can work around.
Synthesis hardware
- Peptide synthesizer (manual or automated reactor vessel with nitrogen agitation)
- Polystyrene or PEG-based resin with appropriate linker (Wang, Rink amide, or 2-chlorotrityl)
- Fritted syringes or reaction vessels for manual SPPS
- Nitrogen or argon gas line for inert atmosphere coupling
Chemical reagents
- Fmoc-protected amino acids for each residue in the target sequence
- Coupling reagents: HBTU, HATU, or DIC with HOBt or HOAt
- Deprotection solution: 20% piperidine in DMF
- Cleavage cocktail: TFA with scavengers (triisopropylsilane, water, ethanedithiol)
- Solvents: DMF, NMP, DCM, and diethyl ether (anhydrous grade)
Purification and analysis instruments
- Reverse-phase HPLC system with C18 column
- LC-MS for molecular weight confirmation and purity assessment
- UV detector set at 214 nm for peptide bond absorbance
Downstream handling supplies
- Lyophilizer for converting purified peptide solution to powder
- Low-binding microcentrifuge tubes and amber vials for storage
- Bacteriostatic water for reconstitution
- Syringes and alcohol wipes for injection protocol work
Peptilab stocks bacteriostatic water, syringes, and alcohol wipes alongside its research peptide catalog, which means researchers can source synthesis consumables and finished peptides from one verified supplier. That matters when traceability across the supply chain is a protocol requirement.
Why does accurate documentation matter in peptide synthesis?
Accurate documentation is the mechanism that converts a one-time successful synthesis into a repeatable, auditable procedure. Without it, a lab cannot identify which variable caused a failed batch or reproduce a successful one. Assay variability across labs persists even when synthetic peptide calibrators are used, because calibration schemes differ between manufacturers. That finding applies directly to any lab running peptide-based assays: the protocol document must specify the calibration standard, its lot number, and the recalibration schedule.
Key documentation requirements for a peptide lab protocol include:
- Reagent traceability. Record supplier, lot number, purity grade, and expiration date for every chemical used in synthesis.
- Instrument calibration logs. Document HPLC column qualification, LC-MS calibration, and balance verification dates.
- Cycle records. Log deprotection verification results (Kaiser test outcome or UV reading) for every residue coupling.
- Cleavage and purification data. Attach HPLC chromatograms and LC-MS spectra to the batch record as primary evidence of purity.
- COA cross-reference. When using commercially sourced peptides, attach the supplier’s certificate of analysis to the experiment record.
Pro Tip: Build a single-page batch record template that captures reagent lots, cycle verification results, and HPLC purity in one document. Reviewers and collaborators can then audit a synthesis in minutes rather than hours.
Standardization gaps in C-peptide measurement illustrate what happens when documentation is treated as optional. Labs using the same WHO synthetic peptide calibrators still report divergent assay values because their internal calibration documentation differs. The lesson for any peptide lab is that the protocol document and the calibration record are inseparable. One without the other produces data that cannot be compared across experiments or institutions. Peptilab’s COAs provide the purity and identity data that anchor that calibration record to a verified starting material.
For researchers who need a structured approach to internal standards in peptide analysis, establishing a consistent reference point within each assay run is the single most effective way to reduce inter-run variability.
What are the best practices for peptide handling, storage, and injection protocols?
Peptide integrity after synthesis depends as much on handling and storage as on synthesis quality. A correctly synthesized peptide can degrade within days if reconstituted improperly or stored at the wrong temperature.
Follow this sequence for reconstitution and injection protocol work:
- Equilibrate the vial. Allow the lyophilized peptide vial to reach room temperature before opening. Cold vials condensate on contact with air, introducing moisture into the powder.
- Calculate the volume. Determine the volume of bacteriostatic water needed to reach the target concentration. Use a low-binding microcentrifuge tube for the calculation if transferring.
- Inject solvent slowly. Direct the bacteriostatic water against the inner wall of the vial rather than onto the peptide cake directly. This prevents foaming and mechanical shearing of the peptide.
- Swirl gently. Rotate the vial slowly until the peptide dissolves. Never shake a reconstituted peptide; shaking introduces air bubbles and can cause aggregation.
- Inspect visually. Confirm the solution is clear and free of particulates before drawing into a syringe.
- Clean the injection site. Wipe with an alcohol swab and allow to dry fully before injection. Wet alcohol at the injection site causes stinging and can carry surface contaminants into the tissue.
- Label and date the vial. Mark the reconstitution date, concentration, and storage condition on the vial immediately after preparation.
- Store correctly. Refrigerate reconstituted peptides at 2–8°C and protect from light. Reconstituted peptides remain stable for up to 90 days under these conditions. Lyophilized peptides stored at minus 20°C last significantly longer.
Common pitfalls to avoid: using regular sterile water instead of bacteriostatic water (which lacks the preservative benzyl alcohol and allows microbial growth), storing reconstituted peptides at room temperature, and drawing air into the syringe before injection. Each of these errors compromises the peptide’s integrity and the experiment’s validity.
For a structured approach to formulation compatibility before reconstitution, Peptilab’s peptide compatibility checklist covers solvent selection, pH considerations, and excipient interactions that affect stability.
Key Takeaways
A complete peptide lab protocol integrates SPPS synthesis cycles, verified equipment, rigorous documentation, and correct handling procedures to produce reproducible, high-quality results.
| Point | Details |
|---|---|
| SPPS cycle verification | Confirm deprotection with a Kaiser test before every coupling step to prevent compounding errors. |
| Equipment checklist | Synthesis, purification, and handling supplies must all be in place before starting a protocol. |
| Documentation is non-negotiable | Record reagent lots, calibration data, and COAs for every batch to support reproducibility and audit. |
| Reconstitution procedure | Inject bacteriostatic water slowly, swirl gently, and refrigerate at 2–8°C for up to 90 days. |
| Calibration standardization | Specify calibrator lot numbers and recalibration schedules in the protocol to reduce inter-run variability. |
Why I think most labs underestimate the protocol document itself
After working through peptide synthesis workflows across multiple research contexts, the pattern I keep seeing is the same: labs invest heavily in instrumentation and reagents, then treat the protocol document as an afterthought. A researcher writes the procedure once, saves it as a draft, and never updates it when the coupling reagent changes or the HPLC column is replaced. Six months later, a new technician follows the outdated document and gets inconsistent results. Nobody connects the discrepancy to the document gap.
The protocol document is not administrative overhead. It is the experiment. Every deviation from a written procedure is an uncontrolled variable. The assay calibration data showing divergent C-peptide values across labs using identical calibrators makes this concrete. The chemistry was the same. The documentation practices were not.
My practical advice: treat the protocol document as a living lab notebook entry, not a one-time write-up. Update it every time a reagent lot changes, a new instrument is introduced, or a synthesis step is modified. Version-control it. Attach the COA from your peptide supplier directly to the relevant batch record. When you source from a supplier like Peptilab that provides third-party verified COAs, you already have the identity and purity anchor your documentation needs. The rest is discipline.
The labs that consistently reproduce their results are not necessarily the ones with the best equipment. They are the ones where the protocol document reflects what actually happened, not what was planned.
— Admin
Peptilab’s research-grade peptides and lab supplies for protocol-ready labs
Researchers who need verified starting materials for protocol-driven work will find Peptilab’s catalog built around that requirement. Every peptide ships with a third-party COA confirming purity above 99%, giving you the documentation anchor your batch records need from day one.
Peptilab stocks a full range of research peptides for Canadian labs, including peptides for metabolic research applications, alongside lab consumables such as bacteriostatic water, syringes, and alcohol wipes. Canadian fulfillment means no import delays and no customs uncertainty for time-sensitive protocols. Browse the full peptide product catalog to match your synthesis or assay requirements with verified, research-grade materials.
FAQ
What is a peptide lab protocol?
A peptide lab protocol is a documented, stepwise procedure covering synthesis, purification, handling, and analysis of peptides to ensure reproducibility in biochemical research. Solid-phase peptide synthesis (SPPS) is the standard method defined within most lab protocols for peptide production.
What equipment is needed for peptide synthesis in the lab?
Essential peptide lab equipment includes a peptide synthesizer or manual reactor, Fmoc-protected amino acids, coupling reagents, DMF and NMP solvents, a reverse-phase HPLC system, an LC-MS instrument, and a lyophilizer for final peptide drying.
How should reconstituted peptides be stored?
Reconstituted peptides should be stored at 2–8°C and protected from light, where they remain stable for up to 90 days. Lyophilized peptides stored at minus 20°C maintain stability for significantly longer periods.
Why does peptide lab documentation matter for research reproducibility?
Documentation records reagent lots, calibration standards, and synthesis verification data, making results auditable and repeatable. Labs using identical synthetic peptide calibrators still report divergent assay values when their calibration documentation differs, confirming that the protocol record directly determines data comparability.
What is the correct way to reconstitute a lyophilized peptide?
Inject bacteriostatic water slowly against the inner wall of the vial, swirl gently until dissolved, and never shake the solution. Shaking causes aggregation and foaming, which degrades peptide integrity before the experiment begins.
