What is ELISA peptide testing: a researcher’s guide

Authors

1012874pwpadmin
Scientist performing ELISA peptide test in lab

ELISA peptide testing is an immunoassay method that quantifies the presence or concentration of a target peptide (or anti-peptide antibodies) in a sample by exploiting specific antibody–antigen binding on a solid phase, then measuring an enzyme-generated signal that correlates directly with analyte concentration. For most peptide applications, the technique delivers high throughput, relatively low per-sample cost, and detection sensitivity adequate for many biological matrices — provided antibody quality, antigen design, and pre-analytical sample handling are all tightly controlled.

Three reference points anchor this guide: the peer-reviewed ScienceDirect review on ELISA history and peptide analysis, the Good ELISA Practice (GEP) manual published by R-Biopharm, and Peptilab as a Canadian supplier of research-grade peptides and laboratory supplies for scientists running these assays domestically.

Table of Contents

What is ELISA peptide testing and how does it work?

The biochemical foundation is straightforward: a peptide antigen (or an antibody that captures it) is immobilised on the surface of a microplate well. When a sample is added, the target peptide binds to the immobilised reagent. A detection antibody conjugated to an enzyme then binds the captured analyte, and a substrate solution converts the enzyme activity into a measurable signal.

Hands pipetting samples into ELISA plate wells

Signal formats include colourimetric (most common, read at OD 450 nm for HRP/TMB systems), fluorescent, and chemiluminescent readouts. Colourimetric detection suits routine high-throughput work; fluorescent and chemiluminescent formats extend sensitivity into the low picogram-per-millilitre range, which matters when the target peptide circulates at very low concentrations or when sample volume is limited.

Peptides present specific immunochemical challenges that proteins do not. Their small size often means only one antibody-accessible epitope is available, which rules out the sandwich format in many cases. Short sequences also tend to be less immunogenic, making antibody generation harder. Adsorption to plastic surfaces is another real concern: peptides can coat plate wells non-specifically or, conversely, fail to coat at all without a carrier protein conjugate. Matrix effects in biological fluids — plasma proteases, lipids, pH shifts — can alter apparent peptide concentration independently of any true biological change.

For coating strategies, two approaches dominate: direct adsorption of a peptide–BSA or peptide–KLH conjugate to a high-binding plate, or capture via an immobilised antibody (used in sandwich formats where feasible). Conjugation through a C-terminal or N-terminal linker, rather than through a residue within the epitope, preserves antibody recognition and is worth specifying at the peptide synthesis stage.

Key biochemical considerations for peptide ELISAs:

  • Single-epitope peptides require competitive or direct formats; sandwich is only feasible when the peptide carries two spatially distinct binding sites
  • Carrier-protein conjugation (BSA, KLH, OVA) improves coating efficiency and immunogenicity for short peptides
  • Colourimetric HRP/TMB systems read at 450 nm and cover most routine quantification needs
  • Fluorescent and chemiluminescent detection extends the lower detection limit for low-abundance targets
  • Peptide adsorption to polypropylene tubes and plate walls can cause underestimation; adding 0.1% BSA to diluents reduces this loss
  • Post-translational modifications (phosphorylation, acetylation) on the target peptide must be matched in the standard and coating antigen

Which ELISA format should you use for peptides?

Choosing the wrong format is the single most common reason a peptide ELISA underperforms. The decision hinges on peptide size, epitope availability, and the sensitivity the application demands.

Researchers discussing ELISA test format options

Sandwich ELISA generally offers the best sensitivity and specificity for quantitative work — but it requires two non-overlapping antibody binding sites on the analyte. For peptides longer than roughly 20 amino acids, this is sometimes achievable. For shorter sequences, it usually is not, and forcing a sandwich format onto a single-epitope peptide produces poor capture efficiency and erratic results.

Competitive ELISA is the format of choice for small peptides with a single epitope. The sample peptide competes with a labelled or plate-bound peptide standard for a limited amount of antibody. Signal decreases as analyte concentration increases — an inverse relationship that requires careful curve fitting but works reliably for analytes that cannot support a sandwich arrangement.

Direct and indirect formats occupy the middle ground. Direct ELISA coats the peptide antigen and detects it with a labelled primary antibody; it is fast and avoids secondary antibody cross-reactivity, but sensitivity is lower. Indirect ELISA adds a labelled secondary antibody, which amplifies signal and allows the same secondary to be reused across assays — useful when screening multiple peptide targets with different primary antibodies.

Format Sensitivity Specificity Best sample types Ideal use case Typical LOD range
Direct Low–moderate Moderate Simple matrices, purified samples Rapid screening, antibody titration 1–10 ng/mL
Indirect Moderate–high Moderate Serum, cell supernatant Anti-peptide antibody detection, immunogenicity 0.1–5 ng/mL
Sandwich High High Plasma, urine, tissue lysate Quantification of larger peptides (>20 aa) 1 pg/mL
Competitive Moderate High Plasma, urine, complex matrices Small peptides, single-epitope analytes 0.1–10 ng/mL

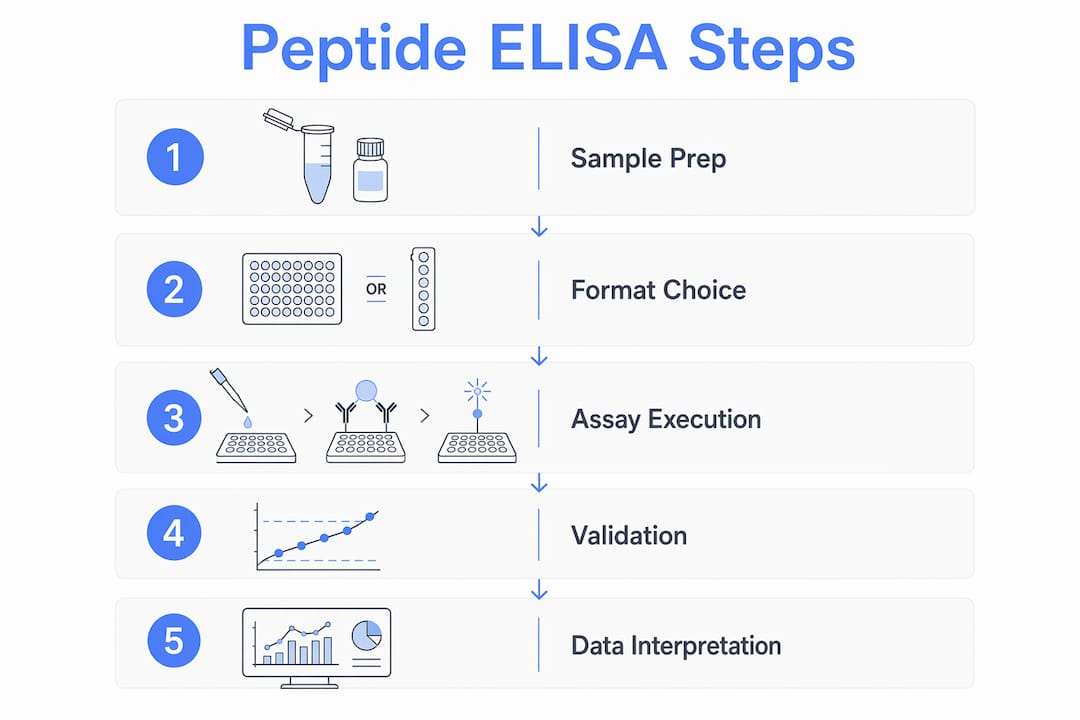

Infographic showing steps of peptide ELISA testing

A few practical selection rules: if your peptide is under 15 amino acids, start with competitive format. If throughput is the priority and the matrix is relatively clean, direct or indirect formats are faster to develop. Reserve sandwich development for peptides where two validated antibodies are already in hand — generating a matched pair from scratch adds months and cost to assay development.

Step-by-step lab workflow for a peptide-targeted ELISA

A well-run peptide ELISA follows a consistent sequence. Deviating from it without documentation is where most reproducibility problems originate.

  1. Plate selection and coating. Use a high-binding 96-well microplate (polystyrene, flat-bottom). Coat overnight at 4 °C with peptide–carrier conjugate (a typical microgram-per-millilitre range in carbonate-bicarbonate buffer, pH 9.6) or with capture antibody (for sandwich format). Seal plates during incubation to reduce evaporation.

  2. Washing. Aspirate coating solution and wash three times with PBS-Tween 20 (0.05%). Incomplete washing at this stage increases background. Proper wash stringency is particularly critical for peptide assays in complex matrices, where non-specific binding is higher than in protein assays.

  3. Blocking. Add blocking buffer such as BSA, non-fat dry milk, or commercial blocker and incubate for sufficient time at room temperature. The choice of blocker matters: milk-based blockers can interfere with phospho-peptide detection; BSA is generally safer for modified peptides.

  4. Standard curve preparation. Prepare a serial dilution of the peptide standard with multiple concentration points, run in duplicate, to cover the expected range. The concentration range should bracket the expected sample values with at least one point above and one below.

  5. Sample and control addition. Add samples, quality control (QC) samples, and blanks in the same order every run. Include a negative control (matrix blank), a positive control at a known concentration, and at least two QC levels spanning the curve. Run samples in duplicate minimum.

  6. Detection antibody incubation. For sandwich and indirect formats, add the detection or secondary antibody (HRP-conjugated) at the validated concentration. Incubate 1–2 hours at room temperature with gentle shaking.

  7. Substrate reaction. Add TMB (3,3’,5,5’-tetramethylbenzidine) substrate for HRP systems. Incubate in the dark for 15–30 minutes. The reaction is time-sensitive — start the stop solution across all wells at a consistent pace.

  8. Stop and read. Add stop solution (typically 1 M H₂SO₄ or 2 N H₂SO₄). Read absorbance at 450 nm with a reference wavelength of 570 nm or 620 nm to correct for optical artefacts. Kit technical manuals for validated sandwich workflows typically specify OD 450 nm as the primary readout wavelength.

  9. Curve fitting and calculation. Fit the standard curve using a 4-parameter logistic (4PL) or 5-parameter logistic (5PL) model. Back-calculate sample concentrations. Flag any sample whose absorbance falls outside the linear range of the curve and re-run at a different dilution.

  10. QC review. Accept a run only when positive controls fall within ±20% of their target value and replicate CVs are within the pre-defined acceptance criteria. Document any deviations.

Good ELISA Practice recommends multi-channel pipettes for buffer and substrate dispensing to maintain timing consistency across all wells, and single-channel precision pipettes for samples and standards where accuracy is paramount.

How should you handle peptide samples before the assay?

Pre-analytical handling is where most peptide ELISA data goes wrong, and it receives far less attention in published protocols than it deserves.

The core problem: peptides in biological fluids are substrates for proteases. Plasma, serum, urine, and tissue homogenates all contain endogenous proteolytic activity that begins degrading target peptides the moment the sample is collected. Without immediate intervention, a sample that sat at room temperature for 30 minutes before freezing can show meaningfully lower peptide concentrations than one processed immediately — and that difference will look like a biological signal rather than a handling artefact.

Inconsistent use or omission of protease inhibitors is a primary driver of inter-laboratory variance in peptide concentration measurements. There is no single international standard for peptide stabilisation in biological fluids, which means each laboratory must define and document its own SOP. The practical consequence: two labs measuring the same peptide in the same sample type can report concentrations that differ by a factor of two or more, not because their assays differ, but because their sample handling does.

Evidence-based pre-analytical practices for peptide samples:

  • Immediate cooling: place collected samples on wet ice within two minutes of collection
  • Protease inhibitor cocktails: add a broad-spectrum inhibitor cocktail (e.g., PMSF, EDTA, aprotinin, leupeptin) at collection; for specific peptide classes, tailor the inhibitor to the dominant protease family (serine, metalloprotease, cysteine)
  • Time-to-freeze: target less than 30 minutes from collection to snap-freeze in liquid nitrogen or placement at −80 °C
  • Aliquoting: prepare single-use aliquots to avoid repeated freeze–thaw cycles; each freeze–thaw cycle can degrade labile peptides measurably
  • Storage temperature: −80 °C for long-term storage; −20 °C is acceptable for short-term (days) but not for months-long studies
  • Plastic adsorption: use low-binding polypropylene tubes for dilute peptide samples; add 0.1–0.5% BSA to diluents when working below 1 ng/mL

For peptide stability testing, a spike-and-hold experiment at each storage condition is the most direct way to quantify pre-analytical loss before committing to a full study.

Pro Tip: Include a protease activity check (e.g., a FITC-casein fluorescence assay) on a subset of your samples at collection. Protease activity assays quantify the proteolytic burden in your matrix and tell you whether your inhibitor cocktail is actually working — not just whether you added it. A sample with high residual protease activity after inhibitor addition needs a different inhibitor strategy, not just a higher concentration of the same one.

What validation metrics does a peptide ELISA need?

Validation is not optional — it is the evidence that your assay measures what you think it measures, at the concentrations you care about, with acceptable precision. The table below outlines the core metrics, how to calculate each, and suggested acceptance criteria drawn from Good ELISA Practice and peer-reviewed standards.

Metric Definition How to calculate Acceptance criteria
Limit of detection (LOD) Lowest concentration distinguishable from blank Mean blank signal + 3 SD; back-calculate from curve Specific to assay; typically pg/mL to ng/mL range
Limit of quantification (LOQ) Lowest concentration with acceptable precision and accuracy Mean blank signal + 10 SD; confirm CV and recovery at this level CV ≤20%, recovery 80–120%
Intra-assay CV Precision within a single run % CV for replicates within one plate <10–15%
Inter-assay CV Precision across multiple runs % CV for QC samples across multiple runs <15–20%
Spike recovery Accuracy of quantification in matrix Recovery percentage (measured vs spiked concentration) 80–120%
Dilution linearity Parallelism between sample and standard curve Serial dilution of high-concentration sample; compare back-calculated values ±20% of expected across dilutions
Cross-reactivity Specificity against structurally related peptides Test panel of homologous peptides at high concentration; calculate % cross-reactivity <10% for most applications

Dilution linearity deserves particular attention in peptide assays. If a sample diluted 1:4 does not give a concentration four times lower than the undiluted value (within the acceptance window), the matrix is interfering with the assay — and concentrations calculated from the standard curve will be wrong regardless of how well the curve fits. Running a parallelism experiment before committing to a full sample set catches this problem early.

Cross-reactivity panels should include not just structurally similar peptides but also known metabolites and post-translationally modified forms. Monoclonal antibodies provide lot-to-lot consistency but must be specifically tested against homologous peptides; structural homology can produce false positives that do not appear in general validation data.

Troubleshooting common peptide ELISA problems

Even well-designed assays fail. Knowing which symptom points to which root cause saves days of re-running plates.

High background signal:

  • Insufficient blocking: extend blocking time or switch blocker (BSA instead of milk for phospho-peptides)
  • Inadequate washing: increase wash cycles from 3 to 5, or add a 30-second soak step between aspirations
  • Detection antibody concentration too high: titrate down in 2-fold steps
  • Non-specific binding from matrix: add 0.05% Tween 20 and 1% BSA to sample diluent

Poor or absent signal:

  • Antibody affinity insufficient for the peptide: validate antibody binding by dot blot before committing to plate format
  • Coating failure: confirm peptide or capture antibody adsorption with a direct detection step; try a different coating buffer (carbonate vs. PBS)
  • Enzyme inactivation: check HRP conjugate activity with a direct substrate test; avoid sodium azide in any buffer used with HRP
  • Substrate degradation: TMB is light-sensitive; use fresh aliquots and protect from light during incubation

Non-linear or poorly fitting standard curve:

  • Concentration range too narrow or too wide: adjust to bracket the expected sample range with at least one log unit above and below
  • Hook effect at high concentrations (sandwich format): dilute samples and re-run; add a pre-incubation step with sample before adding detection antibody
  • Improper curve-fitting model: switch from 4PL to 5PL if the curve is asymmetric

Plate edge effects:

  • Temperature gradients during incubation cause wells at the plate perimeter to incubate at a slightly different temperature than central wells. Avoid placing plates directly on cold bench surfaces; use a plate incubator set to a stable temperature. Maintaining a readout temperature of 20–25 °C during photometric detection also reduces this artefact, particularly for low-signal peptide assays.

Pre-run troubleshooting checklist:

  • Confirm all reagents are at room temperature before use
  • Check expiry dates on antibodies, substrate, and stop solution
  • Verify pipette calibration (gravimetric check monthly for critical pipettes)
  • Inspect plate for well-to-well contamination or residual liquid after washing
  • Confirm standard curve replicates agree within 10% before accepting the run
  • Review blank wells — any signal above 0.05 OD units warrants investigation

Pipetting speed and consistency across wells is one of the most underestimated sources of CV inflation. Use multi-channel pipettes for substrate and wash buffer; reserve single-channel pipettes for samples and standards where precision matters more than speed. For contamination prevention during plate handling, change tips between every sample and avoid touching the pipette tip to the well wall.

Where is peptide ELISA actually used?

The range of applications is broader than most researchers initially expect, and the format choice shifts considerably depending on the goal.

Pharmacokinetics (PK) and drug development. Plasma PK studies for peptide therapeutics are one of the highest-volume uses. The assay quantifies intact drug peptide in plasma over time, generating concentration-time profiles for half-life and clearance calculations. ELISA handles the throughput that LC-MS/MS cannot match economically at large sample numbers, though LC-MS/MS remains the confirmatory standard for novel peptides where cross-reactivity has not been fully characterised. ELISA is a cost-effective, high-throughput complement to mass spectrometry for many of these applications, even if it cannot resolve post-translational modifications or exact molecular identity the way LC-MS/MS can.

Biomarker quantification. Endogenous peptides — natriuretic peptides, ghrelin, angiotensin fragments, neuropeptides — are measured in clinical research cohorts where sample numbers run into the hundreds or thousands. ELISA’s per-sample cost advantage over mass spectrometry is decisive at that scale. For peptide diagnostics, the indirect format is also used to detect anti-peptide antibodies in patient serum; this is the basis of many autoimmune and infectious disease serological assays.

Immunogenicity assessment. When a peptide therapeutic is administered to humans or animals, the immune system may generate anti-drug antibodies (ADAs). Indirect ELISA, with the therapeutic peptide coated on the plate and patient serum as the sample, is the standard screening format for ADA detection. Positive screens are typically confirmed by a bridging assay or by competitive inhibition.

Cosmetic peptide efficacy and QC. In applied cosmetic research, ELISA quantifies peptide concentration in formulations and in ex vivo skin models to confirm delivery and stability. This is a growing application area, particularly for anti-aging and skin-barrier peptides where demonstrating measurable tissue penetration is part of the efficacy claim. Cosmetic peptide efficacy testing workflows often combine ELISA with collagen or elastin biomarker assays to link peptide exposure to downstream biological response.

Quality control in peptide manufacturing. Manufacturers use ELISA to verify peptide identity and purity in production lots, particularly when the target peptide is present in a complex mixture. The specificity of the antibody provides a selectivity advantage over UV-based purity methods for structurally similar sequences.

How do you interpret peptide ELISA results, and what are the limits?

An ELISA result is a concentration estimate, not a molecular identity confirmation. That distinction matters more for peptides than for most other analyte classes.

The core limitation is antibody-based specificity: the assay detects anything the antibody binds, not only the intended target. For peptides, this means structurally similar sequences — fragments, metabolites, or homologous peptides from related proteins — can contribute to the measured signal. A result that looks like 500 pg/mL of your target peptide may include signal from a cross-reactive fragment at 50 pg/mL. Whether that matters depends on the application and the cross-reactivity percentage established during validation.

When ELISA-only data is sufficient:

  • The antibody cross-reactivity panel is complete and all tested analogues show <10% cross-reactivity
  • Sample concentrations fall well within the validated quantification range (not near LOD)
  • Dilution linearity and spike recovery have been confirmed in the specific matrix
  • The peptide is not known to undergo rapid post-translational modification in the sample type

When orthogonal confirmation is needed:

  • Novel peptides where the antibody has not been fully characterised against all potential cross-reactants
  • Results near the LOD or LOQ, where signal-to-noise is low and curve-fitting uncertainty is highest
  • Suspected matrix effects (e.g., parallelism failure, spike recovery outside 80–120%)
  • Post-translational modifications are biologically relevant (phosphorylation, glycosylation) and the antibody’s selectivity for modified vs. unmodified forms has not been validated

LC-MS/MS is the standard orthogonal method. It provides molecular weight confirmation, sequence information, and can distinguish modified from unmodified peptide forms — none of which ELISA can do. For peptide analytical techniques that require both throughput and molecular specificity, a tiered approach works well: ELISA for screening, LC-MS/MS for confirmation of a subset of samples or for novel analytes.

For statistical reporting, always state the LOD and LOQ for the run, the curve-fitting model used (4PL or 5PL), the intra-assay CV for each QC level, and whether any samples required dilution. Results reported without these parameters cannot be meaningfully compared across studies.

Key takeaways

ELISA peptide testing delivers reliable quantification when format selection, pre-analytical handling, and validation are matched to the specific peptide and matrix — skipping any one of these three steps is where most assay failures originate.

Point Details
Format selection is critical Use competitive ELISA for small or single-epitope peptides; reserve sandwich format for peptides with two distinct binding sites.
Pre-analytical handling drives variance Standardise protease inhibitor use and time-to-freeze; inconsistent handling is the leading cause of inter-laboratory differences in peptide measurements.
Validation is non-negotiable Confirm LOD, LOQ, intra/inter-assay CV, spike recovery, and dilution linearity before reporting data from any peptide ELISA.
Orthogonal confirmation has a role Use LC-MS/MS to confirm near-LOD results, novel peptides, or any run where parallelism or spike recovery fails acceptance criteria.
Peptilab for Canadian sourcing Peptilab supplies research-grade peptides with COAs and >99% purity for Canadian labs developing and running peptide ELISAs.

A practical perspective on peptide ELISA development

The part of peptide ELISA development that published protocols consistently understate is how much time gets spent on antibody selection and pre-analytical optimisation relative to the actual plate-based steps. A researcher who has run many of these assays will tell you that the plate protocol itself — coating, blocking, incubation, wash, read — is the easy part. The hard part is arriving at that plate with an antibody that actually works for your specific peptide sequence and a sample that has not been partially degraded before it ever touched the well.

The antibody question is worth addressing directly. Polyclonal antibodies are faster to generate and often show broader epitope coverage, which can be an advantage when the target peptide has limited immunogenic sequence. Monoclonal antibodies give you lot-to-lot consistency and a defined epitope, but that defined epitope is also a liability: if the epitope overlaps with a post-translational modification site, or if a homologous peptide in your matrix shares that sequence, your monoclonal will not distinguish them. Running a cross-reactivity panel against every structurally related peptide you can identify is not optional — it is the experiment that tells you whether your result means what you think it means.

On the pre-analytical side, the single highest-return investment for a new peptide assay is a spike-and-hold stability experiment before the first real samples are processed. Spike your matrix with a known concentration of the target peptide, process aliquots at each planned storage condition and time point, and measure recovery. If you lose 30% of signal after one freeze–thaw cycle, you know before you have committed 200 patient samples to a protocol that will systematically underestimate concentration.

Document every deviation from your SOP in the lab notebook, not just the final result. Peptide ELISA development is iterative, and the notes from a failed run — which blocker caused background, which coating concentration gave a flat curve — are often more valuable than the data from a successful one. Reproducibility in this field is built from accumulated empirical observation, not from following a generic protocol exactly once.

Research-grade peptides for Canadian labs running ELISA studies

Canadian researchers running peptide ELISAs face a procurement challenge that their counterparts in larger markets often do not: import delays, customs clearance uncertainty, and the risk of receiving peptide lots without adequate documentation. That is the practical gap Peptilab addresses.

Peptilab

Peptilab supplies research-grade peptides in Canada with verified purity (>99%), third-party certificates of analysis, and domestic fulfilment — no import delays, no customs uncertainty. For assay development, starting with a well-documented, high-purity peptide lot is not a luxury; it is a prerequisite for generating reliable standard curves and coating antigens. Peptilab also carries laboratory supplies including syringes and bacteriostatic water to support the full workflow. Canadian researchers can review the sourcing guide for research-grade peptides to identify the right peptide specifications for their assay, then order directly with confidence in domestic delivery timelines. Start with a small, well-documented lot for pilot validation before scaling to full study quantities.

Useful sources for further reading

The references below are the primary documents this guide draws on. Each serves a distinct purpose in assay development.

“There is no single international standard for peptide stabilisation in biological fluids; inconsistent use or omission of protease inhibitors is a primary driver of inter-laboratory variance in peptide concentration measurements.” — ScienceDirect review: A short history, principles, and types of ELISA, and our laboratory experience with peptide/protein analyses using ELISA

Peer-reviewed methodology and review articles:

  • NCBI PMC — ELISA methods review: Use for methodological background, format comparisons, and citation in publications. Peer-reviewed and freely accessible.
  • PubMed — ELISA and peptide/protein analysis: Relevant for researchers needing primary literature citations on ELISA performance in biological matrices.
  • ScienceDirect — ELISA history and peptide analysis: The most directly relevant review for peptide-specific ELISA considerations, including protease inhibitor standardisation and inter-laboratory variance.
  • Cleveland Clinic — ELISA overview: Accessible background on ELISA purpose and clinical context; useful for communicating assay rationale to non-specialist stakeholders.

Practical guidance and protocols:

  • Good ELISA Practice (GEP) manual — R-Biopharm: The definitive SOP-level reference for pipetting, washing, incubation, and plate-handling best practices. Consult this before writing any new ELISA SOP.
  • Pepperpedia — ELISA for Peptides: Concise format-by-format overview with peptide-specific notes on signal types and format selection.
  • Assay Genie — Human Pepsin ELISA Kit technical manual: Example of a validated sandwich ELISA kit manual; useful as a concrete protocol reference for readout parameters and standard workflow steps.
  • Abcam — Protease Activity Assay Kit (ab111750): FITC-casein based kit for quantifying protease burden in biological samples; recommended for pre-analytical characterisation of new sample matrices.

This article provides general scientific information for research purposes. Researchers should consult current Health Canada guidelines, applicable laboratory certification requirements (e.g., ISO 15189 for medical laboratories), and qualified regulatory or scientific advisors for their specific assay context and intended use.
