Peptide secondary structure explained for researchers

Authors

1012874pwpadmin
Biochemist studying peptide structures in lab

Peptide secondary structure refers to the local, repetitive three-dimensional conformations that a peptide backbone adopts, stabilised primarily by hydrogen bonds between backbone N–H donors and C=O acceptors. These conformations arise before any long-range tertiary contacts form, making them the first organised architecture to emerge during folding. The principal elements are:

  • α-helix: right-handed coil, 3.6 residues per turn, i to i+4 H-bond pattern
  • β-sheet: extended strands connected by i to i+2 (antiparallel) or longer-range (parallel) H-bonds
  • 3₁₀ helix: tighter coil, 3.0 residues per turn, i to i+3 H-bond pattern
  • Polyproline II (PPII) helix: extended left-handed helix, common in disordered regions and collagen
  • Turns and loops: β-turns, γ-turns, and irregular coil connecting regular elements

Why does this matter? Secondary structure shapes folding pathways, creates the binding surfaces that drive molecular recognition, determines proteolytic susceptibility, and governs aggregation propensity. Tools like DSSP and PSIPRED provide the standard frameworks for assigning and predicting these elements, and Peptilab’s research-grade peptides are designed with these structural principles in mind.

Table of Contents

What is peptide secondary structure, and what are its main elements?

The α-helix is the most abundant secondary-structure element in globular proteins. Its geometry is defined by a φ angle near −57° and ψ near −47°, placing it squarely in the helical basin of the Ramachandran plot. Each backbone carbonyl oxygen forms a hydrogen bond with the amide N–H four residues along the chain, producing a compact, rod-like structure with a rise of 1.5 Å per residue and a pitch of 5.4 Å per turn. Alanine and leucine are strong helix formers; proline and glycine are not. Proline lacks an amide proton and introduces a rigid kink; glycine’s small side chain allows φ/ψ angles that escape the helical basin too easily.

β-sheets organise two or more extended strands side by side. In an antiparallel arrangement, adjacent strands run in opposite directions and form straight, perpendicular H-bonds, giving a slightly more stable geometry than the parallel arrangement, where H-bonds are skewed. The φ/ψ values for β-strands cluster around −120°/+125°. Valine, isoleucine, and threonine favour β-strand conformations; alanine and charged residues are less common there.

Detailed beta-sheet molecular peptide model

The 3₁₀ helix is narrower and more strained than the α-helix, with an i to i+3 H-bond pattern and φ/ψ near −49°/−26°. It appears frequently at the C-terminal end of α-helices and in short peptide segments. The polyproline II helix has no intramolecular H-bonds at all; it is stabilised by backbone–solvent interactions and is the dominant conformation of unfolded polypeptides in water, which is why it matters so much for intrinsically disordered peptides.

Turns connect secondary-structure elements and reverse the chain direction. The β-turn spans four residues (i to i+3) and is classified into Types I, II, I′, and II′ based on the φ/ψ angles of the central two residues. Glycine and proline appear disproportionately in turns because their conformational preferences match the required geometry.

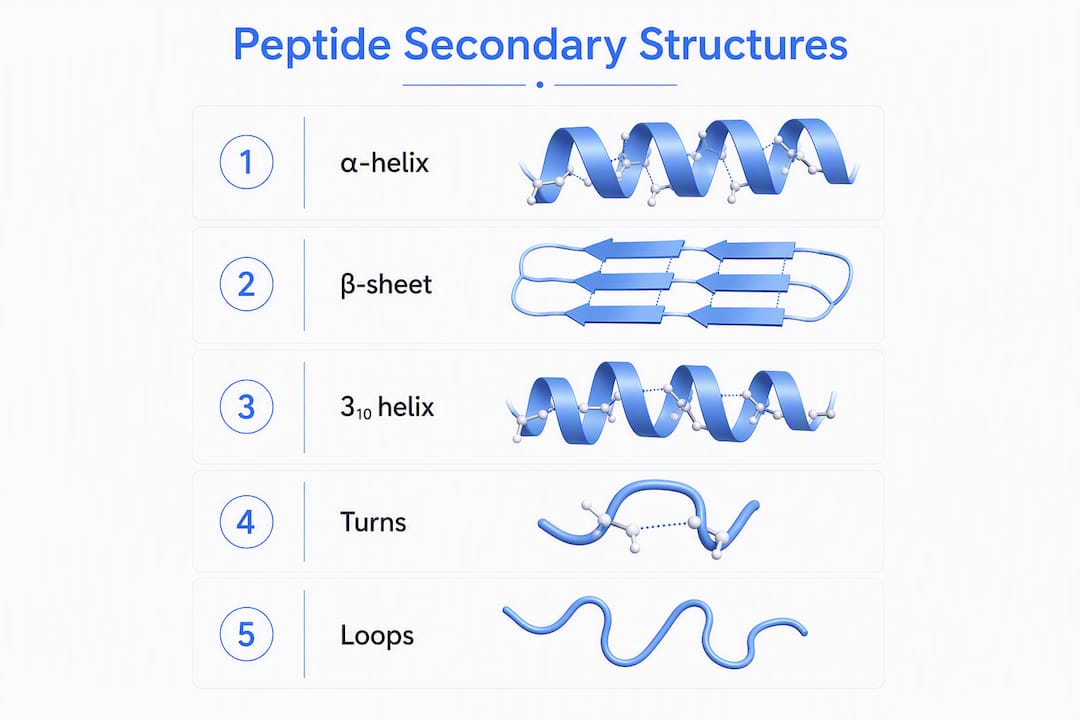

Infographic depicting types of peptide secondary structure

Element H-bond pattern Residues per turn Rise per residue
α-helix i to i+4 3.6 1.5 Å
3₁₀ helix i to i+3 3.0 2.0 Å
Polyproline II none (solvent) 3.0 3.1 Å

Experimental signatures worth knowing: α-helices give a characteristic circular dichroism (CD) double minimum at 208 nm and 222 nm; β-sheets show a minimum near 218 nm and a positive band around 195 nm; PPII gives a positive band near 228 nm. In NMR, sequential NOE connectivities (dNN for helices, dαN for sheets) and Hα secondary chemical shifts provide residue-level structural information.

What drives secondary structure formation at the atomic level?

The peptide bond is planar. Resonance delocalises electron density across the C–N bond, restricting rotation and locking the O, C, N, and H atoms in a single plane. This planarity is not a minor constraint: it immediately limits the conformational freedom of the backbone to just two dihedral angles per residue, φ (C–N–Cα–C) and ψ (N–Cα–C–N). The Ramachandran plot maps which φ/ψ combinations are sterically allowed; the helical and β-strand basins are the two largest favourable regions, which is why α-helices and β-sheets dominate.

Backbone hydrogen bonding is the primary stabilising force. Database surveys show that backbone H-bonds account for at least ~75% of the stabilising interactions within secondary structures; unsatisfied buried polar groups are rare in folded proteins. The energetic cost of burying an unsatisfied carbonyl or amide without a compensating H-bond is high enough that evolution has largely eliminated such arrangements from stable folds. DSSP formalises this by treating an interaction as a hydrogen bond only when its electrostatic energy is below a set threshold, filtering out weak or distorted contacts.

Researcher examining hydrogen bonds in peptide model

Nucleation is the rate-limiting step. Forming the first H-bond in a helix costs entropy without yet gaining much enthalpy; subsequent H-bonds are progressively more favourable as the helix propagates. This cooperative character means that a single destabilising substitution near the N-terminus of a helix can unravel the entire element, while a stabilising substitution at the same position has an outsized positive effect.

Solvent competes directly with intramolecular H-bonds. In water, backbone polar groups are well-solvated; forming a secondary structure requires displacing those water molecules. The net gain depends on the balance between intramolecular H-bond enthalpy and the entropic cost of ordering the backbone. This is why secondary structure acts as a pre-organisation stage: sequence biases the conformational landscape and reduces the entropic barrier to reaching the native fold.

  • Helix-favouring residues: Ala, Leu, Met, Glu, Lys
  • Helix-disrupting residues: Pro (no amide H, rigid backbone), Gly (too flexible), Asp, Ser (side-chain H-bond competition)
  • β-strand formers: Val, Ile, Thr, Phe, Tyr
  • Turn-promoting residues: Gly, Pro, Asn, Asp

Pro Tip: A single proline substitution in the middle of a designed helix will almost certainly break it. N-methylation of a backbone amide has a similar effect because it removes the H-bond donor, but it also confers proteolytic resistance — a useful trade-off when designing therapeutic peptides where stability matters more than helicity at that position.

How is secondary structure classified and annotated?

DSSP (Define Secondary Structure of Proteins) is the standard algorithm for assigning secondary structure from atomic coordinates. It recognises eight states: H (α-helix), G (3₁₀ helix), I (π-helix), E (β-strand), B (isolated β-bridge), T (hydrogen-bonded turn), S (bend), and C (coil/loop). In practice, most downstream analyses collapse these into three states: helix (H+G+I), sheet (E+B), and coil (T+S+C). This three-state simplification is what most secondary-structure predictors output.

STRIDE is an alternative algorithm that combines H-bond energy criteria with φ/ψ statistics from the PDB. It tends to assign slightly more residues to helical states than DSSP at the termini of helices, because it weights backbone geometry alongside H-bond energy. For most research purposes the two algorithms agree; disagreements are most common at the boundaries of secondary-structure elements and in regions with marginal H-bond geometry.

Reading a PDB file’s secondary-structure annotation is straightforward once you know the format. The HELIX and SHEET records in a PDB file list the chain identifier, start residue, end residue, and helix type (coded 1–10 for different helix classes). DSSP output files list one line per residue, with the assigned state in column 17. When you see a G in that column, the residue is in a 3₁₀ helix, not an α-helix, which matters if you are comparing with a predictor that only outputs H/E/C.

Automated assigners can disagree for several reasons:

  • H-bond energy cutoffs: DSSP uses −0.5 kcal·mol⁻¹; other tools use different thresholds, shifting helix/coil boundaries.
  • Crystallographic resolution: at resolutions worse than ~2.5 Å, atomic positions are less precise, and marginal H-bonds may be assigned inconsistently.
  • Assignment heuristics: STRIDE and SST incorporate statistical priors; DSSP is purely energy-based. For short peptides with few H-bonds, the choice of algorithm can change the assignment of entire segments.
  • Ensemble vs. single-structure assignment: NMR ensembles often show residues fluctuating between states; a single DSSP assignment on one conformer can be misleading.

Which experimental methods measure peptide secondary structure?

Choosing the right method depends on what you need to know: a bulk estimate of secondary-structure content, residue-level assignments, or a full three-dimensional model.

Circular dichroism (CD) is the workhorse for peptides. It is fast, requires low sample amounts (typically 0.1–0.5 mg/mL in a 1 mm pathlength cell), and gives a secondary-structure content estimate in minutes. The limitation is that it reports population-weighted averages across all conformers in solution. For short peptides, the signal is weak and can be contaminated by aromatic side chains (Trp, Phe, Tyr absorb in the far-UV). Always run a baseline with buffer alone and subtract carefully; even trace amounts of trifluoroethanol (TFE) or DMSO affect the baseline.

FTIR detects the amide I band (C=O stretch, ~1600–1700 cm⁻¹) and amide II band. The frequency of the amide I band shifts predictably with secondary structure: α-helices absorb near 1650 cm⁻¹, β-sheets near 1630 cm⁻¹ (with a weaker band near 1685 cm⁻¹ for antiparallel sheets). FTIR works in H₂O or D₂O and is useful for aggregated or membrane-associated peptides where CD is impractical.

NMR spectroscopy provides the most detailed picture for peptides in solution. NMR allows structure determination under varied conditions — different lipid compositions, temperatures, and pH values — revealing conformational variability that a single static model cannot capture. Key observables include Hα secondary chemical shifts (upfield for helices, downfield for sheets), sequential NOE patterns, and hydrogen-bond protection factors from H/D exchange.

X-ray crystallography and cryo-EM provide atomic-resolution models but require either a crystal (X-ray) or a particle large enough to align in vitreous ice (cryo-EM). Short peptides rarely crystallise well on their own; they are more commonly studied as co-crystals with a binding partner. Cryo-EM is generally impractical for peptides below ~50 residues unless they are part of a larger complex.

Method What it reports Typical limitation for peptides
CD Bulk secondary-structure content (%) Population average; aromatic interference; weak signal for short peptides
FTIR Secondary-structure content via amide I frequency Overlapping bands; requires D₂O for water subtraction
NMR Residue-level assignments, H-bond protection, dynamics Requires ~0.5–5 mM; signal overlap for >30 residues
X-ray crystallography Atomic coordinates, H-bond geometry Requires crystal; may not reflect solution conformation
Cryo-EM Atomic/near-atomic model in near-native state Impractical for isolated short peptides
H/D exchange Backbone amide protection (H-bond mapping) Requires MS or NMR; fast exchange in short peptides

Practical notes for CD on short peptides: signals below 200 nm are often swamped by buffer absorbance. Use low-salt buffers (phosphate or fluoride salts rather than chloride), keep the peptide concentration consistent across a series, and always check for aggregation by DLS before interpreting the spectrum. A peptide that aggregates will give a distorted CD signal that looks like a β-sheet even when the monomer is helical.

How does the same sequence behave differently as a peptide versus in a protein?

Context dependence is one of the most underappreciated aspects of peptide secondary structure. A 12-residue segment that forms a stable α-helix in the interior of a protein may be almost entirely disordered when synthesised as an isolated peptide. The reason is straightforward: inside a protein, that segment is stabilised by tertiary contacts with residues far away in sequence, by the hydrophobic core that buries its non-polar face, and by neighbouring secondary-structure elements that cap its H-bond donors and acceptors. Strip those contacts away and the peptide is left to compete with solvent.

Peptides under ~15 residues rarely adopt stable helices without chemical constraints. The entropic cost of ordering a short chain is simply too high relative to the small number of stabilising H-bonds available. Backbone carbonyl oxygens that were H-bonded inside the protein become exposed to solvent, and this lost hydrogen-bonding is a major reason synthetic peptides often fail to replicate the binding affinities of their parent protein segments.

Stabilisation strategies used in research include:

  • Cyclisation: head-to-tail or side-chain-to-side-chain cyclisation restricts conformational freedom and can lock in a turn or loop geometry.
  • Hydrocarbon stapling: an all-hydrocarbon crosslink between i and i+4 (or i+7) positions reinforces helical structure and improves cell permeability.
  • Disulfide bridges: two cysteine residues form a covalent crosslink that constrains the backbone; useful for β-hairpin and loop mimetics.
  • Hydrogen-bond surrogates: replacing the i to i+4 H-bond with a covalent bond (e.g., a lactam bridge) removes the entropic cost of H-bond formation.
  • Helix-inducing solvents: TFE (2,2,2-trifluoroethanol) at 10–30% v/v reduces the competition from water and stabilises helical conformations in vitro; useful for CD characterisation but not physiologically relevant.

Pro Tip: Before concluding that your peptide is disordered, run a TFE titration (0%, 10%, 20%, 30% TFE in aqueous buffer) and monitor by CD. If helicity increases with TFE, the sequence has intrinsic helical propensity that is masked by solvent competition. This is a standard control that distinguishes truly unstructured sequences from those that are structured under the right conditions. Peptilab’s peptide stability testing guide covers complementary stability controls for this kind of assay.

Which computational tools predict peptide secondary structure?

Prediction tools fall into two broad categories: those trained on protein datasets and those designed specifically for peptides. The distinction matters more than most researchers realise.

PSIPRED is the most widely used protein secondary-structure predictor. It uses position-specific scoring matrices (PSSMs) derived from multiple sequence alignments (MSAs) and a neural network trained on PDB structures. For full-length proteins it performs well, but for short peptides it has a systematic weakness: MSAs are scarce for sequences under ~30 residues, and the training data is dominated by protein-length sequences. On a peptide test set, PSIPRED achieved a Q3 accuracy of ~76.9%, compared with ~83.5% for PEP2D on the same set.

PEP2D was developed specifically for peptides. The PEP2D webserver uses evolutionary information and peptide-specific training data, and the authors report improved segment overlap (SOV) scores versus PSIPRED on peptide datasets. It is the recommended starting point for any peptide under ~40 residues.

AlphaFold2 has changed structural biology, but its performance on peptides is uneven. Benchmarking across hundreds of peptides shows AF2 can succeed for peptides smaller than about 40 residues with well-defined secondary structure, but shows reduced accuracy for flexible or multi-turn peptides… Floppy termini and disulfide-rich peptides are particular problem areas. PEP-FOLD and PEPstr are lighter-weight alternatives that model tertiary structure for short peptides and can complement AF2 for sequences where it underperforms.

A practical workflow:

  • Run PEP2D (or a peptide-specific predictor) first to get a secondary-structure prediction with peptide-appropriate training.
  • Generate a tertiary model with PEP-FOLD or AF2 where a three-dimensional context is useful.
  • Confirm with CD or NMR; treat any prediction for a peptide under 15 residues as a hypothesis, not a result.
  • Prediction quality improves with peptide length and with inclusion of evolutionary information; for very short sequences, experimental confirmation is not optional.

Computational pitfalls to watch for: MSA scarcity for short peptides means PSSM-based methods may default to coil predictions; conformational heterogeneity in solution means a single predicted structure may not represent the dominant species; and environment-dependent folding (membrane vs. aqueous) is almost never captured by sequence-only predictors.

Why does secondary structure matter biologically?

Secondary structure is not just a structural description; it is a functional determinant. The amphipathic α-helix is the clearest example. Membrane-spanning helices in G-protein-coupled receptors and ion channels use a continuous stretch of hydrophobic residues on one face of the helix to anchor in the lipid bilayer, while the opposite face can carry charged or polar residues that line an aqueous pore or interact with cytoplasmic partners. The helical geometry is what creates this two-faced architecture; a disordered peptide cannot do it.

β-sheet-driven aggregation is the other canonical example. Amyloid-β peptide (Aβ), the fragment implicated in Alzheimer’s disease, transitions from a largely disordered monomeric state to a cross-β fibril in which each peptide contributes a pair of β-strands running perpendicular to the fibril axis. The intermolecular H-bonds between strands are chemically identical to those in a normal β-sheet; what makes amyloid pathological is the irreversibility of the assembly and the toxicity of the oligomeric intermediates.

Practical consequences for therapeutic peptides:

  • Binding affinity: a pre-organised helix or turn presents hot-spot residues in the correct geometry for receptor binding, reducing the entropic penalty of binding and increasing affinity.
  • Proteolytic stability: ordered secondary structure buries backbone amide bonds and reduces accessibility to proteases; engineering stable secondary structure increases proteolytic resistance.
  • Aggregation propensity: β-strand-prone sequences aggregate more readily; predicting aggregation-prone windows (using tools like TANGO or Zyggregator) is part of any serious peptide design workflow.
  • Pharmacokinetics: secondary structure affects hydrodynamic radius, membrane permeability, and renal clearance — all relevant for therapeutic peptide development.

For cosmetic peptide applications, secondary structure governs how a signal peptide interacts with its receptor at the skin surface. Understanding these conformational preferences is directly relevant to cosmetic peptide efficacy testing and to identifying quality ingredients for formulation.

Practical lab rules for measuring and engineering peptide secondary structure

Getting reliable secondary-structure data from a peptide experiment requires more discipline than most protocols acknowledge. Here is a condensed checklist.

  1. Choose the right peptide length. Expect ordered structure only for peptides of 15 residues or more, unless you are using a stabilisation strategy. For peptides under 15 residues, plan for disorder and design your controls accordingly.
  2. Set minimum concentrations. For CD, aim for 0.1–0.5 mg/mL in a 1 mm cell; for NMR, 0.5–5 mM is typical. Measure concentration by UV absorbance (Trp/Tyr) or amino acid analysis — not by weight alone.
  3. Check for aggregation first. Run DLS or a ThT fluorescence assay before CD or NMR. Aggregated samples give misleading spectra. If DLS shows particles above ~10 nm, dilute or change the solvent before proceeding.
  4. Use TFE as a diagnostic, not a conclusion. A TFE titration tells you whether helical propensity exists; it does not tell you what the peptide does in a physiological buffer.
  5. Verify sequence and purity. Confirm identity by mass spectrometry and purity by HPLC before any structural assay. A batch COA from your supplier is the starting point, not the endpoint. Peptilab provides batch-specific certificates of analysis with every order; sequence verification protocols are a useful complement to supplier documentation.
  6. Design for helicity or sheet propensity deliberately. To increase helicity: substitute Ala for Gly or Ser at internal positions, add a glutamate–lysine i to i+4 salt bridge, or use an Ac/NH₂ cap to eliminate helix-dipole destabilisation at the termini. To increase β-sheet propensity: incorporate Val, Ile, or Thr at strand positions and avoid charged residues in the core.
  7. Run replicates and document solvent conditions. Secondary structure in peptides is sensitive to pH, ionic strength, and temperature. Report all of these; a result without solvent conditions is not reproducible.

Pro Tip: For a basic CD experiment on a candidate helix-forming peptide: dissolve the peptide in 10 mM phosphate buffer (pH 7.4) at 0.2 mg/mL, confirm concentration by UV, run DLS to confirm monodispersity, then collect CD from 260 to 190 nm at 25°C with a 1 mm pathlength cell. Subtract the buffer baseline. If you see a double minimum at 208 and 222 nm, you have a helix. Repeat in 30% TFE to establish the maximum helical content. The ratio of [θ]₂₂₂ in buffer to [θ]₂₂₂ in TFE gives a rough estimate of fractional helicity under aqueous conditions. For reproducibility guidance across batches, Peptilab’s peptide lab protocol resource is a practical reference.

Key takeaways

Peptide secondary structure is defined by local backbone conformations stabilised by N–H ••• O=C hydrogen bonds, and understanding these elements is the foundation of rational peptide design, experimental characterisation, and functional interpretation.

Point Details
Core definition Secondary structure = local repetitive backbone conformations (α-helix, β-sheet, turns) stabilised by backbone H-bonds.
Physical driver Backbone H-bonds account for at least ~75% of stabilising interactions in secondary structures; DSSP assigns them at a −0.5 kcal·mol⁻¹ threshold.
Peptide-specific caveat Peptides under ~15 residues rarely adopt stable secondary structure without cyclisation, stapling, or other chemical constraints.
Prediction guidance Use peptide-specific tools (PEP2D, ~83.5% Q3 accuracy) over protein-trained predictors (PSIPRED, ~76.9% Q3 on peptide sets); always confirm experimentally.
Experimental priority CD is the fastest first-pass method; NMR provides residue-level detail; always check for aggregation by DLS before interpreting spectra.

A researcher’s perspective on peptide secondary-structure problems

The most common mistake in peptide structural work is treating a protein-derived prediction as ground truth for a short peptide. PSIPRED is an excellent tool for proteins; it was not designed for a 12-residue fragment, and the MSA it builds for that fragment is often nearly empty. The prediction defaults to coil, the researcher concludes the peptide is disordered, and the experiment is designed around that assumption. Sometimes the assumption is correct. Often it is not, and a TFE titration or a simple NMR experiment would have revealed intrinsic helical propensity that the predictor missed entirely.

The second pitfall is under-reporting solvent conditions. Secondary structure in peptides is not a fixed property; it is an equilibrium that shifts with pH, ionic strength, temperature, and the presence of co-solvents or lipid interfaces. A result reported without these conditions cannot be reproduced, compared, or built upon. This is not a minor documentation issue; it is the difference between a publishable result and a dead end.

The third, and perhaps most consequential, pitfall is conflating the structure of a peptide in isolation with its structure when bound to a target. A peptide that is disordered in solution can fold upon binding, and that induced fit is often the mechanism. Designing a pre-organised peptide that mimics the bound conformation can dramatically improve affinity, but only if you know what the bound conformation actually is. That requires either a co-crystal structure, a transferred NOE NMR experiment, or a well-validated docking model — not a sequence-only prediction.

The practical triage for any peptide secondary-structure question: start with sequence analysis and a peptide-specific predictor, run a CD experiment with a TFE control, then commit to NMR or crystallography only when the question genuinely requires residue-level resolution. Most questions do not. Most can be answered with a well-designed CD series and a clear aggregation check. The researchers who get the most out of their structural experiments are the ones who match the method to the question, not the ones who default to the most expensive instrument available.

Useful sources and further reading

The sources below are the primary references for the concepts covered in this article. Each is listed with its most practical use case.

  • Biochemistry, Secondary Protein Structure — StatPearls, NCBI Bookshelf: the clearest entry-level reference for the four levels of protein structure and the formal definitions of α-helix and β-sheet geometry; recommended for students building foundational knowledge.
  • Secondary structure: α-helices and β-sheets — EMBL-EBI training: authoritative, diagram-rich explanation of H-bond patterns and residue propensities from EMBL-EBI; best for visual learners and for understanding the physical basis of each element.
  • Secondary protein structure — Wikipedia (DSSP section): the most accessible summary of DSSP’s eight-state assignment system and the −0.5 kcal·mol⁻¹ H-bond threshold; use this to decode PDB annotation outputs.
  • PEP2D webserver — Raghava lab, IIIT Delhi: the recommended tool for peptide-specific secondary-structure prediction; use it in preference to PSIPRED for sequences under ~40 residues.
  • Benchmarking AlphaFold2 on peptide structure prediction — PMC: the most thorough published assessment of AF2 performance across 588 peptides; essential reading before committing to AF2 as your primary modelling tool for short sequences.
  • Peptide secondary structure prediction using evolutionary information — bioRxiv: the primary source for the Q3 accuracy comparison between PEP2D and PSIPRED on peptide datasets; also explains why MSA scarcity limits protein-trained predictors for short peptides.
  • Bent into shape: folded peptides to mimic protein structure — PMC: the best single review of stabilisation strategies (stapling, cyclisation, H-bond surrogates) and the length-dependence of peptide secondary structure; directly relevant to therapeutic and cosmetic peptide design.
  • Do all backbone polar groups in proteins form hydrogen bonds? — PMC: the database survey underpinning the claim that backbone H-bonds account for at least ~75% of stabilising interactions; use this when justifying why excised peptides lose binding affinity.
  • Peptilab: research-grade peptides for Canadian researchers: practical resource for sourcing well-characterised, COA-verified peptides for secondary-structure studies; covers product types and quality standards relevant to experimental reproducibility.
